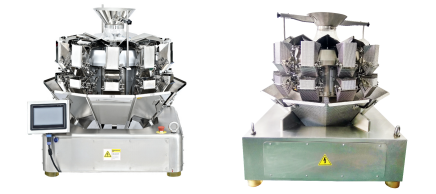

CBW-1A10(05) modular mini 10 head weigher

: ~~No price~~

Collect

商品说明

CBW-1A10(05) Modular Mini 10 head Weigher

1. Application:
It is suitable for weighing small granules such as candy, seeds, tea, coffee beans, etc.

2. Main Features:

◆ 100 programs for multiple tasks.

◆ Program recovery function can reduce operation failure.

◆ High precision digital load cell.

◆ Linear amplitude can be adjusted independently.

◆ No products auto pause function can improve weighing stability and accuracy.

◆ Modular control system, AD cards no need Number, can be interchangeable.

◆ New actuaor design reduces the mechanical vibration and improves the accuracy of load cell.

◆ Each drive board is independent, can be changed freely, even in different weighers.

◆ Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.

◆ Weighers with strong self-checking function, can realize the closed loop testing, real-time detect abnormalities in each node, and real-time display in human-machine interface.

◆ The software versatility, strong compatibility, different weighers using the same control

system.

4. Specifications：

Model	CBW-1A10(05)	CBW-1A14(05)
Max. Cap.(g)	5-100g	5~200g
Weighing Accuracy(g)	0.1-1.0g	0.1~1.0g
Max. Weighing Speed	60PPM	120PPM
Hopper Volume	0.5 L
Control Panel	7"Touch Screen
Driving System	Step Motor
Options	Dimple Plate/Timing Hopper/Printer
Power supply	220V/800W/50-60HZ/8A	220V / 1100W / 50/60HZ /10A
Packing dimension (mm)	L1200xW980xH980mm	L1200xW980xH980mm
Weight(kg)	180KG	250KG
