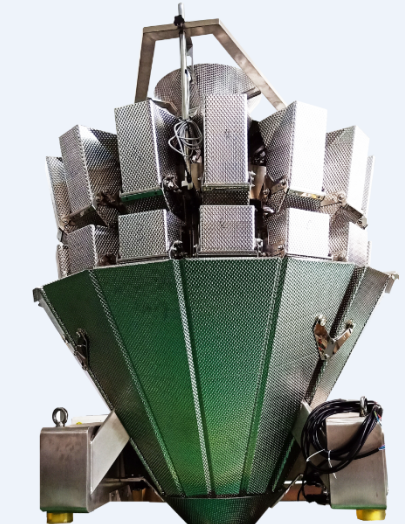

CBW-1A14 Modular 14 head cheese weigher

1. Application

It is suitable for weighing of soft and sticky material, such as cheese, jelly candy, cotton candy, preserved fruits, candied fruit, etc.

2. Main Features:

◆ Waterproof machine frame

◆Mold hoppers can be change with each other.

◆ Speed adjustable rotary top cone is suitable for different product feeding.

◆ Enhanced linear vibrator improves the flow-ability of material.

◆ The declinational special linear vibrator pans, ensure smooth feeding.

◆ 60 degree dimple discharge chute contributes to less sticky problems.

◆ High speed stagger dump function.

◆ User-friendly help menu in touch screen contributes to easy operation

◆ 100 programs for multiple tasks.

◆ Program recovery function can reduce operation failure.

◆ High precision digital load cell.

◆ Linear amplitude can be adjusted independently.

◆ No products auto pause function can improve weighing stability and accuracy.

◆Optional weighing type material detection, accurate control of feeding time, material thickness, to ensure the accuracy of the weighing.

◆ Modular control system, AD cards no need Number, can be interchangeable.

◆ All the hoppers can be opened to make cleaning easily and quickly.

◆ New actuator design reduces the mechanical vibration and improves the accuracy of load cell.

◆ Each drive board is independent, can be changed freely, even in different weighers.

◆ Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.

◆ Weighers with strong self-checking function, can realize the closed loop testing, real-time detect abnormalities in each node, and real-time display in human-machine interface.

◆ The software versatility, strong compatibility, different weighers using the same control

   system.

3. Technical Specification
