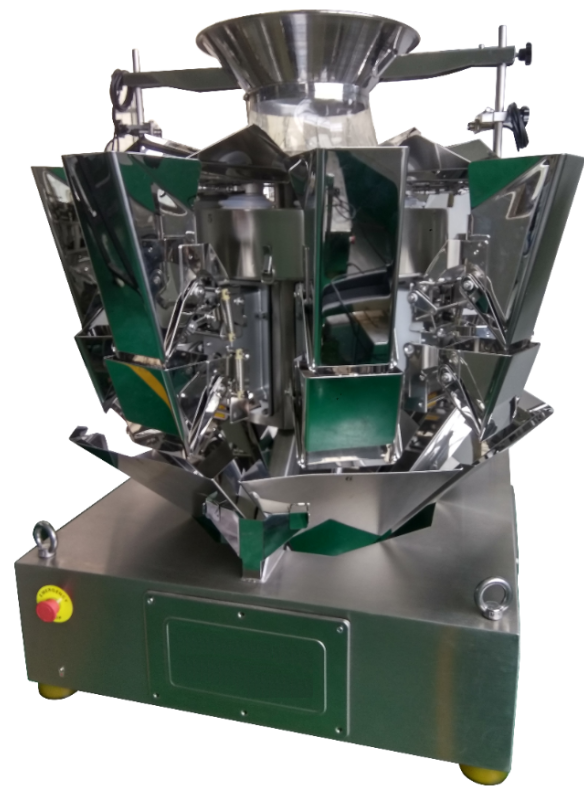

CBW-1A8 8 head modular weigher


1. Application

It is suitable for weighing of granule, slice, roll or irregular shape materials, such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nuts, yogurt, pet food, frozen foods, etc.



2. Main Features:

 Mold hoppers can be change with each other.

 High speed stagger dump function.

 User-friendly help menu in touch screen contributes to easy operation

 100 programs for multiple tasks.

 Program recovery function can reduce operation failure.

 High precision digital load cell.

 Linear amplitude can be adjusted independently.

 No products auto pause function can improve weighing stability and accuracy.

 Modular control system, AD cards no need Number, can be interchangeable.

 All the hoppers can be opened to make cleaning easily and quickly.

 New actuaor design reduces the mechanical vibration and improves the accuracy of load cell.

 Each drive board is independent, can be changed freely, even in different weighers.

 Friendly HMI, similar with mobile phone operation icons, make operation more easily and simple.

 Weighers with strong self-checking function, can realize the closed loop testing, real-time detect abnormalities in each node, and real-time display in human-machine interface.

 The software versatility, strong compatibility, different weighers using the same control

   system.

 The function of measurement by counting pieces or components can satisfy your various requirements.



3. Technical Specification

Model

CBW-1A8

Single Weighing range

10-500 g

Avg. Accuracy

0.5~2 g

Max.speed wpm

60 wpm

Control panel

7 inch color touch screen

Hoppers Volume

1.6L (single door), plain plate

Construction material

304 Stainless Steel

Driving system

Step Motor

Control system

Modular control system

Power requirement

AC 220V/110V ±10% 50Hz(60Hz)800W

Options

Dimple plate/timing hopper/printer/rotary top cone/multi-mouth top cone/reject device/9.7touch screen

Packaging dimension (mm)

L1610*W970*H1095mm

Gross weight

300kg
